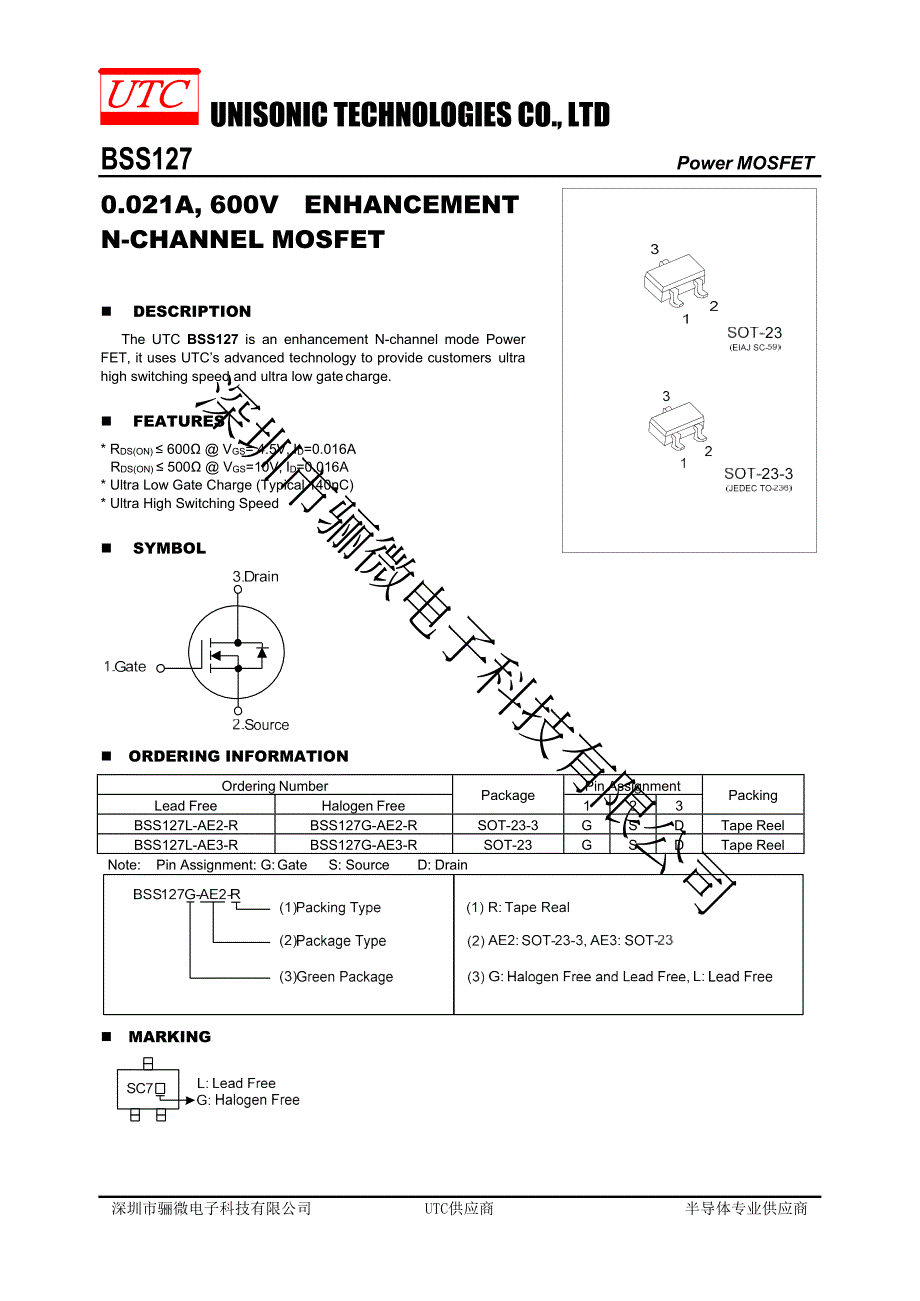

1、unisonic technologies co., ltdbss127power mosfet0.021a, 600venhancement n-channel mosfetn descriptionthe utc bss127 is an enhancement n-channel mode power fet, it uses utcs advanced technology to provide customers ultra high switching speed and ultra low gate charge.n features* rds(on) 600 vgs= 4.5v
2、, id=0.016a rds(on) 500 vgs=10v, id=0.016a* ultra low gate charge (typical 140nc)* ultra high switching speedn symboln ordering informationordering numberpackagepin assignmentpackinglead freehalogen free123bss127l-ae2-rbss127g-ae2-rsot-23-3gsdtape reelbss127l-ae3-rbss127g-ae3-rsot-23gsdtape reelnote

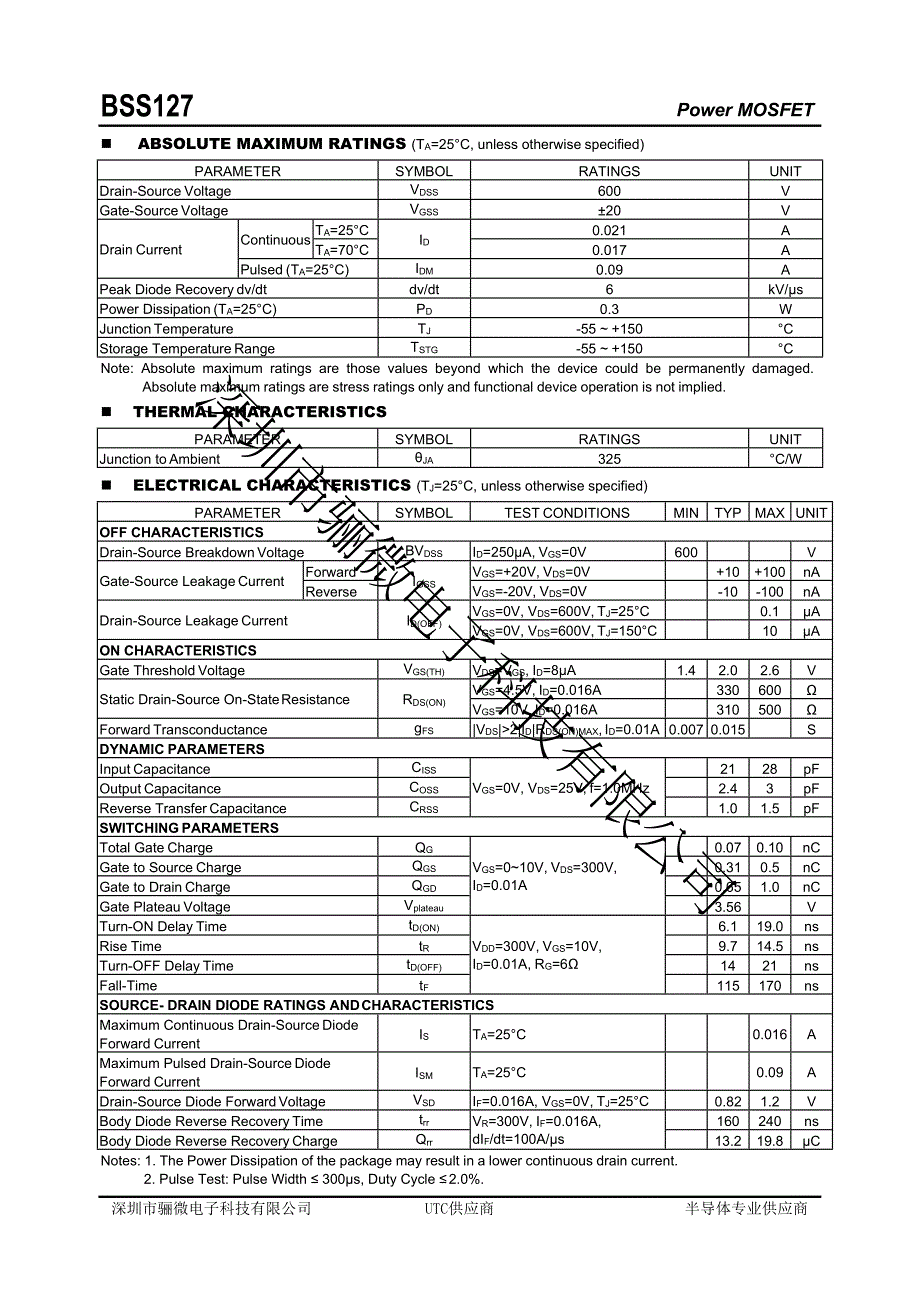

3、: pin assignment: g: gates: sourced: drainn marking深圳市骊微电子科技有限公司utc供应商半导体专业供应商bss127power mosfetn absolute maximum ratings (ta=25c, unless otherwise specified)parametersymbolratingsunitdrain-source voltagevdss600vgate-source voltagevgss20vdrain currentcontinuousta=25cid0.021ata=70c0.017apulsed (ta=2
4、5c)idm0.09apeak diode recovery dv/dtdv/dt6kv/spower dissipation (ta=25c)pd0.3wjunction temperaturetj-55 150cstorage temperature rangetstg-55 150cnote: absolute maximum ratings are those values beyond which the device could be permanently damaged.absolute maximum ratings are stress ratings only and
5、 functional device operation is not implied.n thermal characteristicsparametersymbolratingsunitjunction to ambientja325c/wn electrical characteristics (tj=25c, unless otherwise specified)parametersymboltest conditionsmintypmaxunitoff characteristicsdrain-source breakdown voltagebvdssid=250a, vgs=0v6
6、00vgate-source leakage currentforwardigssvgs= 20v, vds=0v 10 100nareversevgs=-20v, vds=0v-10-100nadrain-source leakage currentid(off)vgs=0v, vds=600v, tj=25c0.1avgs=0v, vds=600v, tj=150c10aon characteristicsgate threshold voltagevgs(th)vds=vgs, id=8a1.42.02.6vstatic drain-source on-state resistancer
7、ds(on)vgs=4.5v, id=0.016a330600vgs=10v, id=0.016a310500forward transconductancegfs|vds|2|id|rds(on)max, id=0.01a0.0070.015sdynamic parametersinput capacitancecissvgs=0v, vds=25v, f=1.0mhz2128pfoutput capacitancecoss2.43pfreverse transfer capacitancecrss1.01.5pfswitching parameterstotal gate chargeqg
8、vgs=010v, vds=300v, id=0.01a0.070.10ncgate to source chargeqgs0.310.5ncgate to drain chargeqgd0.651.0ncgate plateau voltagevplateau3.56vturn-on delay timetd(on)vdd=300v, vgs=10v, id=0.01a, rg=66.119.0nsrise timetr9.714.5nsturn-off delay timetd(off)1421nsfall-timetf115170nssource- drain diode ratings
9、 and characteristicsmaximum continuous drain-source diode forward currentista=25c0.016amaximum pulsed drain-source diode forward currentismta=25c0.09adrain-source diode forward voltagevsdif=0.016a, vgs=0v, tj=25c0.821.2vbody diode reverse recovery timetrrvr=300v, if=0.016a,dif/dt=100a/s160240nsbody

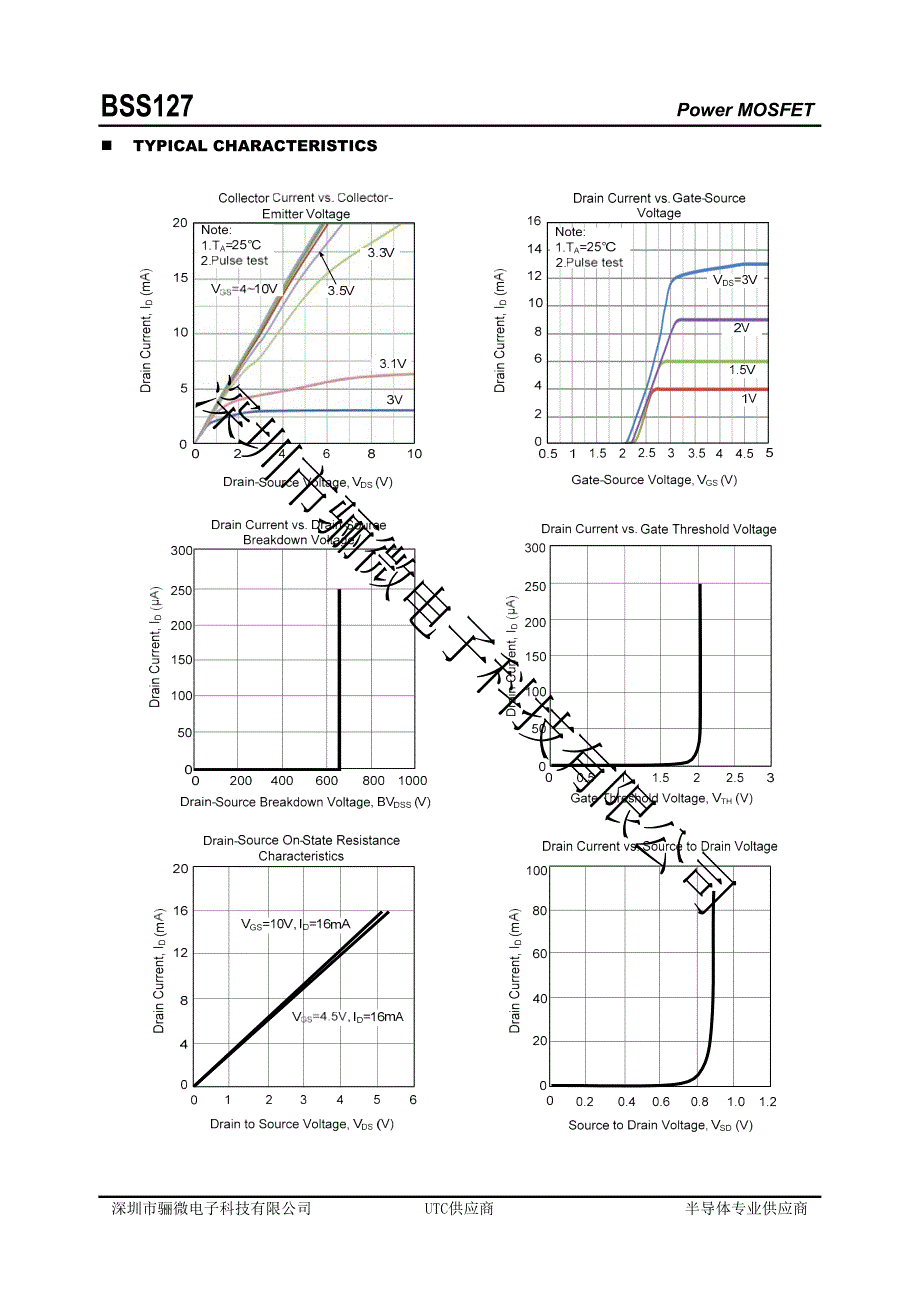

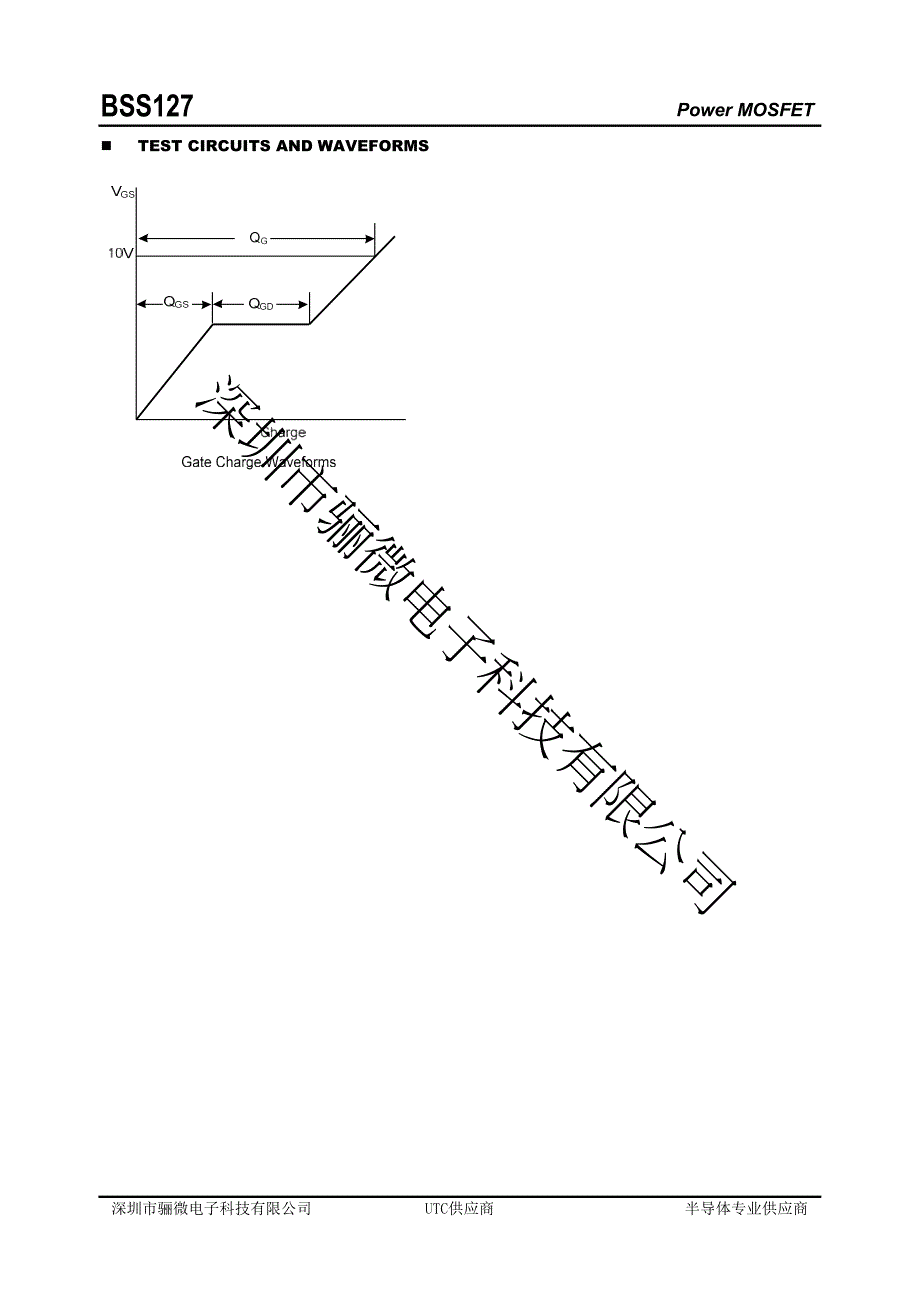

10、diode reverse recovery chargeqrr13.219.8cnotes: 1. the power dissipation of the package may result in a lower continuous drain current.2. pulse test: pulse width 300s, duty cycle 2.0%.n test circuits and waveformsn typical characteristicsutc assumes no responsibility for equipment failures that resu

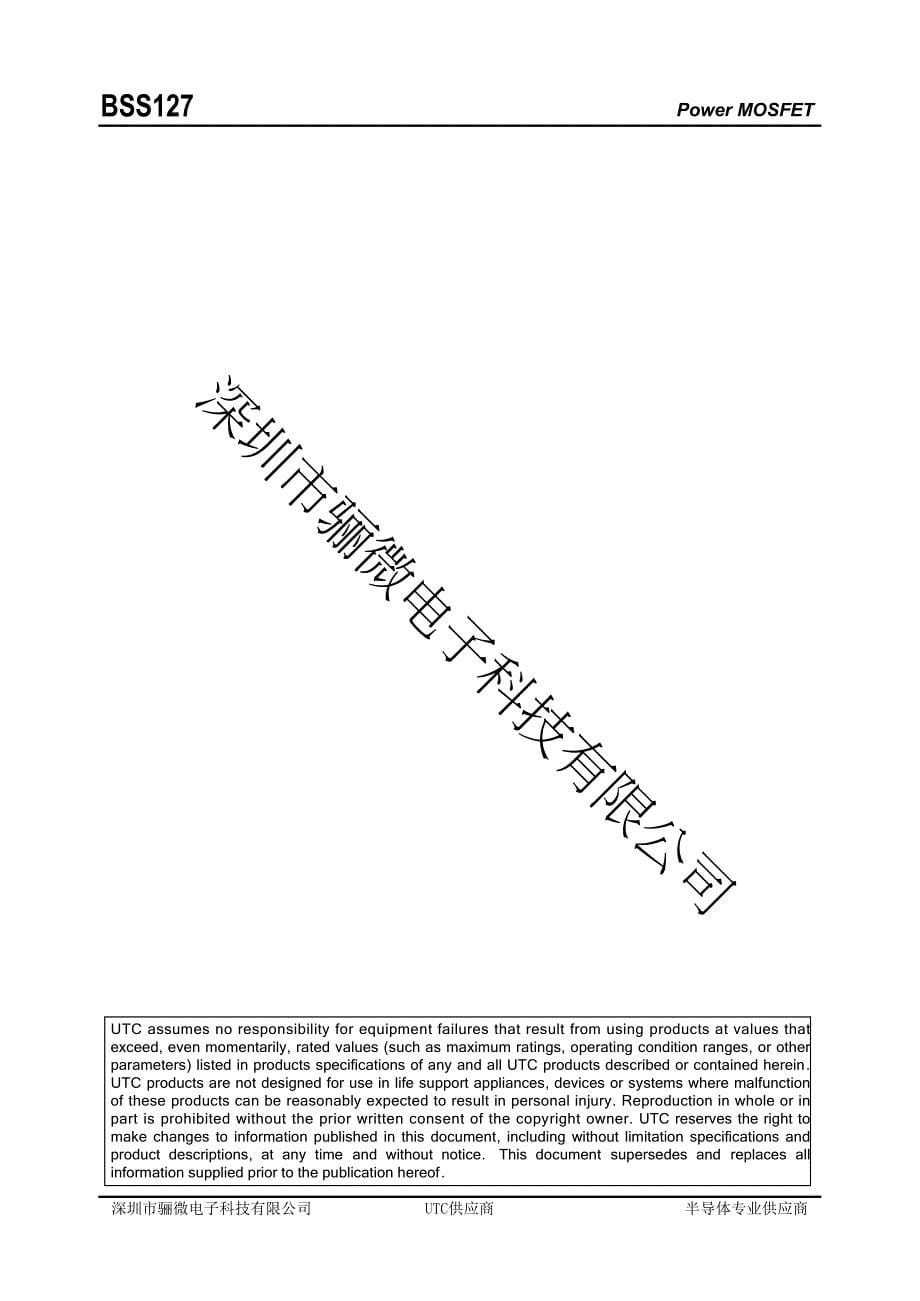

11、lt from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all utc products described or contained herein. utc products are not designed for use in life support a
